COSMOS v-60 4thaxis with tail Stock
Table Travel
600 X 450 X 500 mm
Table Size
700 X 430 mm
Table Feed Rate
5-10000 mm/min
Rapid Feed X,Y,Z
30 , 30 , 20 m/min
Spindle RPM
8000
Nos of tool in ATC
20
Controller
Mitsubishi M64S
4thaxis
Center height – 150mm
Golden Sun CNC 200 & 250R
ITEM / MODEL
CNC-200R
CNC-250R
Table Dia
200 mm / 7.87 inch
250 mm / 9.84 inch
Center Height in Vertical
160 mm / 6.3 inch
185 mm / 7.28 inch
Table Height in Horizontal
165 mm / 6.5 inch
200 mm / 7.87 inch
CVM 800
Table Travel
500 X 800 X 500 mm
Table Dimension
1000 x 500 mm
Table T-slot
18 x 5 x 100 mm
Spindle Speed
8000 rpm
Maximum Tool Length
250 mm
Maximum Tool Weight
8 Kg
No. of Tools
24
Rapid Traverse X/Y/Z Axes
36/36/36(48/48/48) m/min.
Floor Space
2450 W x 2150 D
Net Weight ( With Atc )
4800 Kg
Power Capacity
25 KVA

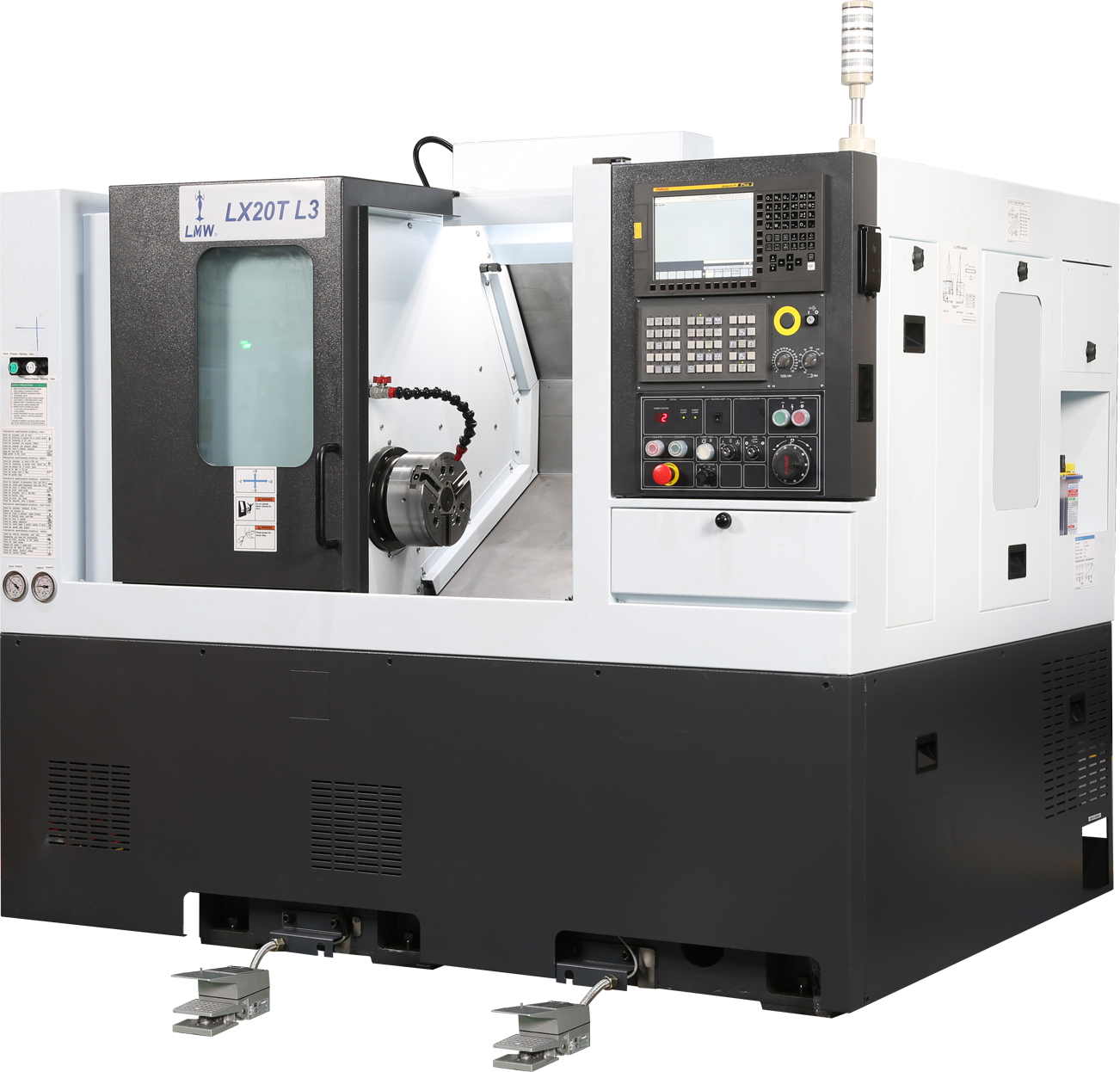

LX20T L3
Travel
185 X 370 mm
Rapid traverse (X/Z) – Axes
30 / 30 m/min
Max. Turning Diameter
320 MM
Max.Turning Length
310* MM
Chuck dia. Size
210 MM
Spindle nose
A2-6 type
Spindle Speed
Fanuc – 3000 /Siemens -3500 RPM
Controller
Fanuc / Siemens / Mitsubishi
MACHINE SIZE L x B x H
2065 x 1650 x 1920 MM
MACHINE SIZE Weight
3200 KG
Super Jobber 500 LM/XL
Swing Over Bed
500 MM
Maximum Turning Dia
320 MM
Maximum Turning Length
500 MM
Spindle Size / Nose
A2-6
Max.Bar Capacity
42* MM
Max.Spindle Speed
3500 RPM
Full Power Range -Seimens
875-2500 RPM
Standard Chuck Size
200 MM
Axis
165 x 500 MM
Coolant Tank Capacity
110 l (litre)
Hydraulic Pump Capacity
14 lpm
Overall Dimensions (LxWxH)
2300 x2395 x1770 MM
Vantage 800
Make
ACE DESIGNER LIMITED
Model
Vantage 800
Max Turning Dia
560 mm
Max Lenth
800 mm
Turret
12 station BTP 100
Spidle Taper
A2-8
Controller
Fanuc Oi-TD
Chuck
315 mm ad 74 mm bar capacity
RPM
50-2500
Drill Machine
Make
Anjani Brand
Capacity
25mm
Cantre
260mm
Stock
250mm
height
5 feet
Weight
210kg
Lathe Machine
4.5 Feet “AKASH Brand” Cone Pulley Type Light Duty Lathe Machine
Bed Width
9″
Centre Height
7.5″
Spindle Bore
38mm
Admin Between Centre
500mm
Swinging over bed
12″
Job Capacity
8″
Spindle Speed Range
50-550rpm Flame Harden bed ways
Lead Screw
4TPI 2V-2Flate Bed ways
Mitutoyo Height Gauge
Range
0-300 mm
Resolution
0.01mm
Accuracy
±0.01mm
Repeatability
0.01mm
LUTHARA Surface Plate
Range
600 X 600 mm
Inspection Instruments
Type
Range
Graduation
Vernier
0-150 mm
0.01mm
Vernier
0-200 mm
0.01mm
Vernier
0-300 mm
0.01mm
Depth Vernier
0-150 mm
0.01mm
Micrometer
0-25 mm
0.01mm
Micrometer
25-50 mm
0.01mm
Micrometer
50-100 mm
0.01mm
Micrometer
75-100 mm
0.01mm
Micrometer
100-125 mm
0.01mm
Micrometer
125-150 mm
0.01mm
Boregauge
12-34 mm
0.01mm
Boregauge
35-60 mm
0.01mm
Boregauge
50-105 mm
0.01mm
